Machining Facilities

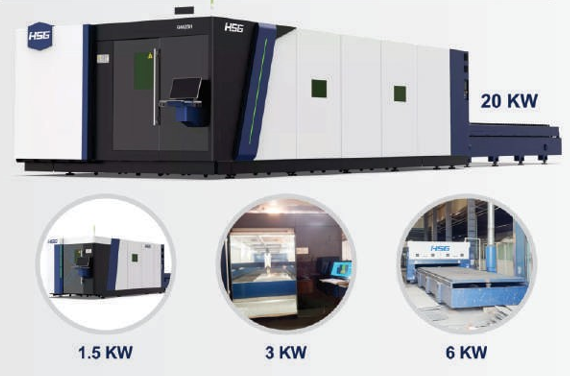

LASER CUTTING MACHINES:
Our Laser cutting machines, from 1.5KW to 20 KW provides precise high speed cuts.
Size capability :
SS up to 50 MM Thick
Carbon steel up to 80 MM Thick
Aluminum & brass up to 30 MM Thick

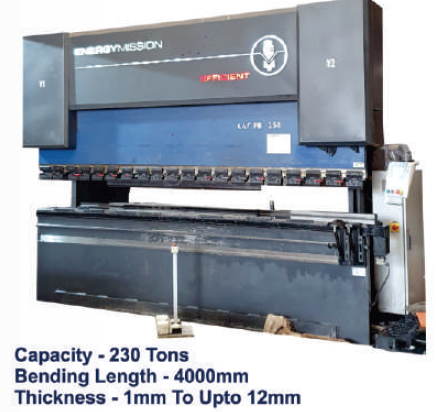

CNC BENDING MACHINES:
CNC Bending facility for a capacity of 230 Tons, range 1 mm to 12 mm thickness, and length up to 4000 mm long sheets/plates.

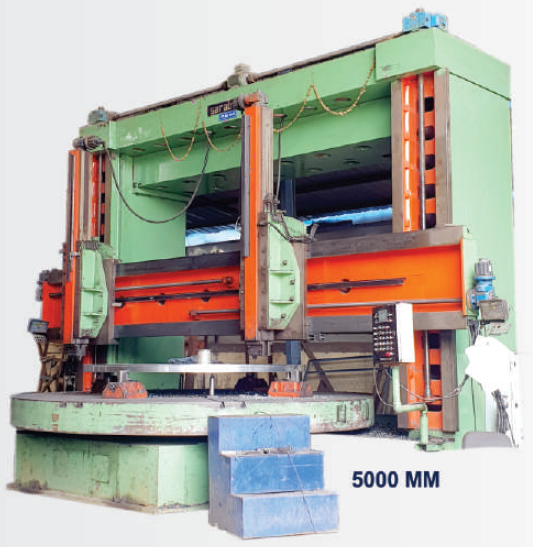

VTL MACHINES:
State of art VTL Machines ( 4 Nos ) , from 1000 mm to 5000 mm capacity, producing large and complex items with precision.

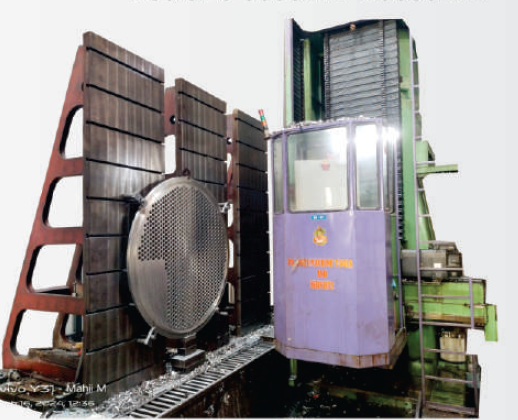

HMCs:
Advanced Horizontal Machining Centers ( HMC ) with 3000 x 3000 MM Bed Size

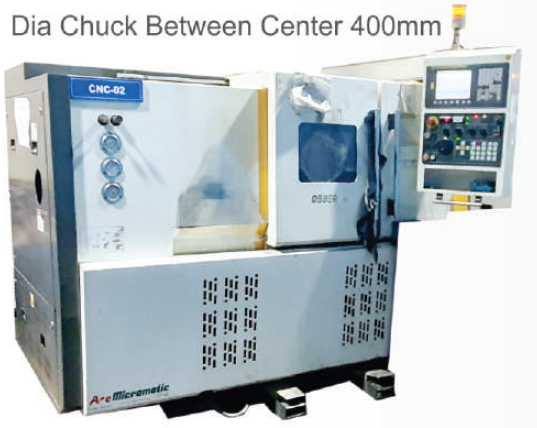

CNC TURNING:
03 CNC Machines with chuck dia of 165, 200, and 400 MM producing high-quality and precision components.

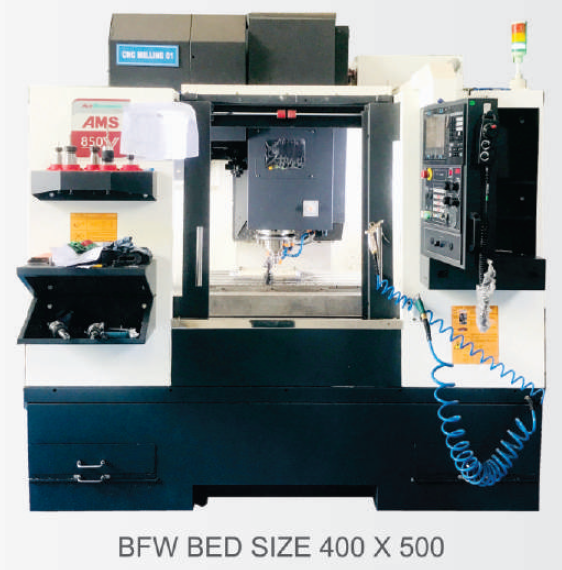

VMC WITH BFW:
Advanced VMC with BFW bed size of 400 x 500 mm, delivering precise and cost-effective molding solutions.

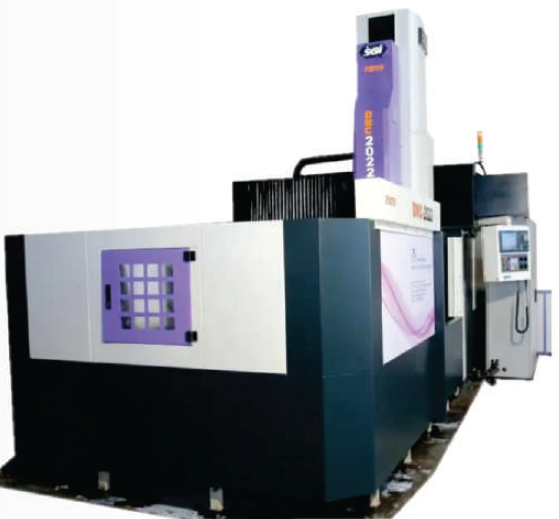

VMC DRILLING:
04 Nos, Advanced VMC Drilling machines, with a maximum bed size of 4200 x 6300 x 1300 MM, highly effective for prototyping, batch production and mass production jobs.
Heat Treatment Unit
Roller Hearth Furnace:
Have a quenching speed of less than 25 seconds. It is also designed to cater to customer requirements for the heat treatment of round bars up to 250 mm in diameter and 6.5 meters in length.
Specification & Description-
No. of Furnaces 1
Furnace type Roller Hearth type
Max. Operating temperature 1100 deg C
Max. Charge dimensions (mm) 6600 L * 1200 B * 500 H
Max. Charge weight 2500 kgs
Max. Quench delay 2500 kgs
Temperature Control Accuracy ± 7 deg C
Furnace Insulation Ceramic Fibre, Mineral Wool lining,
Coldface, Hotface & Hysil blocks
Quenching tanks with a capacity of 25000 litres
Bogie Hearth Furnace:
Wire rods, components and complex shapes in bulk quantities are heat-treated at this facility.
Specification & Description-
No. of Furnaces 2
Furnace type Bogie Hearth type
Max. Operating temperature 1000 deg C
Max. Charge dimensions (mm) 8000 L * 2000 B * 1500 H
Max. Charge weight 12000 kgs
Temperature Control Accuracy ± 8 deg C
Furnace Insulation Ceramic fiber blanket
OTHER FURNACES 05 NOS:
Specification & Description
Furnace type Front opening box type (batch)
Max. Operating temperature 1200 deg C
Max. Charge dimensions (mm) 2400 L * 1500 B * 1000 H for 4 furnaces
3000 L * 2300 B * 1000 H for 1 furnace
Max. Charge weight 2500 kgs
Max. Quench delay 1 Min max
Temperature Control Accuracy ± 10 deg C
Furnace Insulation Ceramic fiber blanket
No. of Quenching tanks 2 ( Oil & water)
Quenching tanks capacity 20000 litres
